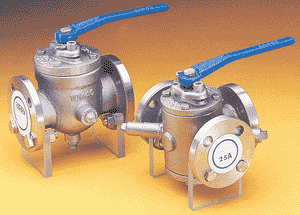

Jacket Ball Valve
| Material Specification | Product Range |
STANDARD DESIGN
a) Design Pressure : 0.1 ~ 24 kgf/cm2
b) Design Temp. : -20 ~ 230 degree C
c) Pneumatic Operated & Electric Operated

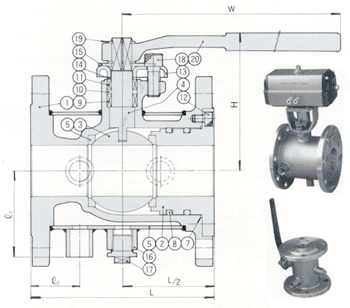

Material Specification
| No. | Part Name | Material |
| 1 | Body | Stainless Steel |
| 2 | Guide Bush | Stainless Steel |
| 3 | Ball | Stainless Steel |
| 4 | Stem | Stainless Steel |
| 5 | Jacket | Stainless Steel |
| 6 | Seat Ring | Teflon (Glass 15%) |
| 7 | Gasket | V / #1500AC |
| 8 | O-Ring | Viton |
| 9 | Packing | Piller / 315N |
| 10 | Packing Ring | Stainless Steel |
| 11 | V-Packing | Teflon |
| 12 | Wrench Bolt | Stainless Steel |
| 13 | Gland | Stainless Steel |
| 14 | Washer | Stainless Steel |
| 15 | Stopper | Stainless Steel |
| 16 | Nozzle | Stainless Steel |
| 17 | Plug | Stainless Steel |
| 18 | Gland Bolt | Stainless Steel |
| 19 | Snap Ring | Carbon Steel (w/Ni coat') |
| 20 | Hand Lever | Ductile Iron |
| MATERIAL | A216 WCB A217 WC6, WC9, C5, C12 A352 LCB, LC1, LC2, LC3 A351 CF8, CF8M, CF3, CF3M etc. |
| CLASS |
150#, 300# |
| SIZE | 1'~ 8' |
| |||
