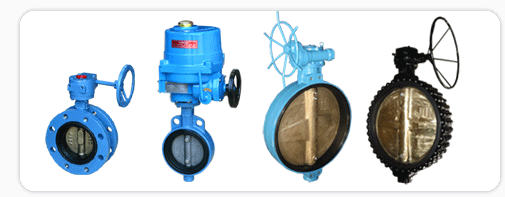

Valve Type : Rubber Lined Butterfly Valve
 Conn. : Wafer / Lugged / Flanged
  Pressure Rating : Max 10kg/§˛
 Size Range : DN 40 - 1200A

Valve Operator : Wrench / Worm Gear / Pneumatic Actuator / Motor Actuator



  For tight shut-off and throttling services
  Full seat pressure rating. Bi-directional
  One piece thru shaft for positive disc positioning
  Rubber lining facing pipe flange, eliminating flange gaskets
  Smooth finished disc flats prevents leakage into stem area
  Replaceable Seat
  End conn.: ISO PN 6/10/16, JIS 5K/10K, ANSI 150
  Face to Face : API 609-A, ISO 5752, BS 515




Item
Material
Body
    Cast Iron, Ductile Iron, Cast Steel, Stainless steel
Disk
    Stainless Steel, Al-Bronze etc
Seat
    NBR, EPDM, VITON
Stem
    Stainless Steel (SS 304, SS 316)

(API 598)

Type
Description
Pressure
Test Medium
Body Test
Ambient temperature
...kg/§˛Ąż1.5
Water
Seat Test
At working pressure
...kg/§˛Ąż1.1
Water




  HVAC and air conditioning technology, industrial installations, Shipbuilding etc
