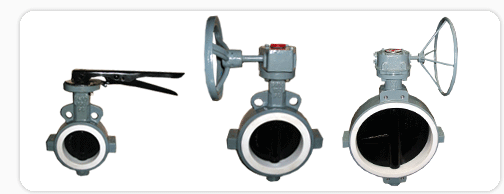

Valve Type : PTFE Lined Butterfly Valve
                    (PTFE/Nylon/PFA-Disc coated)
Connection : Wafer / Lugged

Pressure Rating : Max 10kg/§²
Size Range : DN 50 - 600

Valve Operator : Wrench / Worm Gear / Pneumatic Actuator / E/Motor Actuator



  For tight shut-off and throttling services
  Full seat pressure rating. Bi-directional
  Highly corrosive fluids
  Smooth finished disc flats prevents leakage into stem area
  Replaceable Seat
  End conn.: ISO PN6, PN10,PN16, JIS 5K, JIS 10K, ANSI 150
  Face to Face : API 609-A, ISO 5752, BS 515





Item
Material
Body
    Cast Iron, Ductile Iron, Cast carbon steel, Stainless steel etc.
Disk
    Stainless Steel with PTFE coated
Seat
    PTFE, EPDM
Stem
    Stainless Steel (SS304, SS316) with PTFE coated


Type
Description
Pressure
Test Medium
Body Test
Ambient temperature
...kg/§² & times :1.5
Water
Seat Test
At working pressure
...kg/§² & times :1.1
Water





Petro ¡æ Chemical industry, Food industry sugar & paper mills, Shipbuilding
