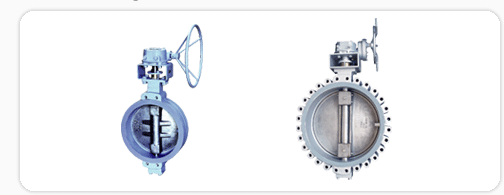

Valve Type : High Performance Butterfly
Valve
|
|
Connection
: Wafer / Lugged /
Flanged
/ Butt-Weld
|
|
|
Pressure Rating : Max 25kg/§²
|
|
Size
Range : DN 50 - 1200
|
|
|
Valve Operator : Wrench / Worm Gear /
Pneumatic Actuator / Motor Actuator
|
|
|
|
|
|
|
|
|
|
|
|
|
For tight
shut-off and throttling services
|
|
|
Full seat
pressure rating. Bi-directional
|
|
|
Double
Offset Shaft (Double Eccentric) / To Reducing Wear On Seat Components
|
|
|
Free
Access To Stuffing Box And Gland
|
|
|
Optional
"Fire Safe" Design To BS 6755 / API 607
|
|
|
End conn.:
ISO PN 10/16/25, JIS 10K 16K, ANSI 150
|
|
|
Face To
Face ; API 609-B / ANSI B16.10 / BS 5155
|
|
|
|
|
|
|
|
|
|
|
|
|
Item
|
Material
|
Body
|
A216
WCB, A351 CF8/CF8M/CF3/CF3M etc
|
Disk
|
Stainless
Steel, AL-Bronze etc.
|
Seat
|
PTFE,
RPTFE
|
Stem
|
Stainless
Steel, Monel etc
|
|
|
|
|
|
|
|
|
Type
|
Description
|
Pressure
|
Test Medium
|
Body Test
|
Ambient temperature
|
...kg/§²¡¿1.5
|
Water
|
Seat Test
|
At working pressure
|
...kg/§²¡¿1.1
|
Water
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HVAC and
air conditioning technology, industrial installations
|
|
|
Petro-Chemical
Industry, Shipbuilding, District Heating / Steam Service
|
|
|
|
|
