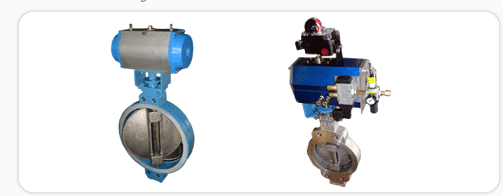

Valve Type : High Performance Butterfly Valve
                   (Fire Safe-Teflon + Metal Seat)
Connection : Wafer / Lugged /
                   Flanged

Pressure Rating : Max 25kg/§²
Size Range : DN 50 - 1200

Valve Operator : Wrench / Worm Gear / Pneumatic Actuator / Motor Actuator



  For tight shut-off and throttling services
  Working Temperature.: -10 to +300 ¡É
  Double Offset Shaft (Double Eccentric) / To Reducing Wear On Seat Components
  Free Access To Stuffing Box And Gland
  "Fire Safe" Design To BS 6755 / API 607
  End conn.: ISO PN 10/16/25, JIS 10K 16K, ANSI 150
  Face To Face ; API 609-B / ISO 5752-Series 25





Item
Material
Body
    A216 WCB, A351 CF8/CF8M/CF3/CF3M etc
Disk
    Stainless Steel, AL-Bronze etc
Seat
    Stainless Steel (SS 316, Inconel 625) + Teflon
Stem
    Stainless Steel, Monel etc


Type
Description
Pressure
Test Medium
Body Test
Ambient temperature
...kg/§²× :1.5
Water
Seat Test
At working pressure
...kg/§²× :1.1
Water





HVAC and air conditioning technology, industrial installations
  Petro-Chemical Industry, Shipbuilding, District Heating / Steam Service
