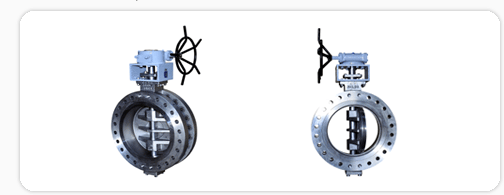

Valve Type : Triple off-set Butterfly Valve
Connection : Wafer / Lugged /
flanged / Butt-Weld
Pressure Rating : 150LB / 300LB / 600LB
Size Range : DN 80A(3") - 1500A(60")
Valve Operator : Worm Gear / Pneumatic Actuator / Motor Actuator
For tight shut-off(Zero Leakage) and throttling services
Full seat pressure rating. Bi-directional

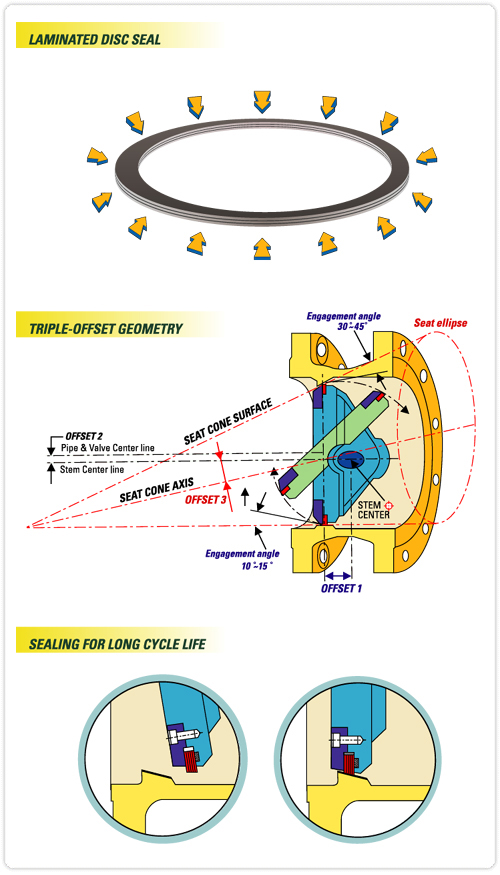

Triple Offset Seat / To Reducing Wear On Seat Components
Free Access To Stuffing Box And Gland
Fire Safe Design To BS 6755 / API 607
End conn.: ISO PN 16/25/40, JIS 16K/20k/30k, ANSI 150/300/600
Face To Face ; API 609-TABLE 2 / ANSI B16.10 / BS 5155-TABLE1, ISO5752-TABLE5
item
Material
Body
Cast Carbon Steel, Stainless Steel, Hastelloy, Duplex etc
Disk
Stainless Steel, Cast Steel, Ni-AL, Bronze etc
Seat
INCONEL + GRAPHITE, SS316 + GRAPHITE
Stem
Stainless Steel, Duplex, MONEL etc
Type
Description
Pressure
Test Medium
Body Test
Ambient temperature
...kg/§˛Ąż1,5
Water
Seat Test
At working pressure
...kg/§˛Ąż1,1
Water
Fossil power plants, Nuclear power plants
Petrochemical plants, Cryogenics, Pulp & Paper
