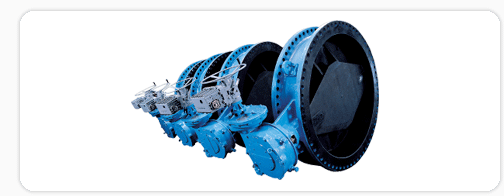

Valve Type : Resilient seated Butterfly Valve
(Inside Full Rubber lined Type)
Connection : Flanged
Pressure Rating : Max 10kg/§²
Size Range : DN 200 - 3000
Valve Operator : Worm Gear / Pneumatic Actuator / E/Motor Actuator
For tight shut-off and throttling services
Seif-adjusting lasts the life of the valve
Proven reliability over the life of the valve
Replaceable Seat
End conn.: ISO PN 6, PN 10, PN 16, JIS 5K, JIS 10K, ANSI 150, AWWA C207
Corrosive service ( Inside Full Rubber lined)
Item
Material
Body
Cast Iron, Ductile Iron, Cast carbon steel, Stainless steel etc
Disk
Stainless Steel, Ductile Iron, Al-Bronze, Rubber lined disc etc
Seat
NBR, EPDM, VITON
Stem
Stainless Steel, Monel etc
Type
Description
Pressure
Test Medium
Body Test
At working pressure
.kg/§²× : 1.5
Water
Seat Test
At working pressure
.kg/§²× : 1.1
Water
Seawater Applications. Desalination Plants.
Corrosive service - Circulating water service / Condenser, Isolation service
