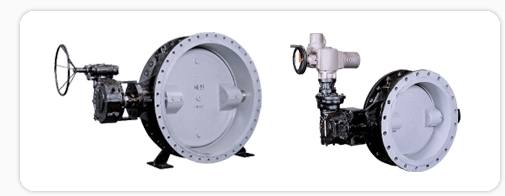

Valve Type : Resilient seated Butterfly Valve
Connection : Flanged
Pressure Rating : Max 10kg/§²
Size Range : DN 200 - 3000
Valve Operator : Worm Gear / Pneumatic Actuator / E/Motor Actuator
For tight shut-off and throttling services
Seif-adjusting lasts the life of the valve
Proven reliability over the life of the valve
Replaceable Seat
End conn.: ISO PN 6/10/16, JIS 5K/10K, ANSI 150, AWWA C207
Korean industrial standards - KS B 2333
Design : KS B 2333, AWWA C504, JIS B 2064, BS 5155
Item
Material
Body
Cast Iron, Ductile Iron, A216 WCB, A351 CF8 etc
Disk
Stainless Steel, Al-Bronze, Rubber Lined etc
Seat
NBR, EPDM, VITON
Stem
Stainless Steel (SS 304, SS 316), Monel etc
Type
Description
Pressure
Test Medium
Body Test
At working pressure
...kg/§²× :1.5
Water
Seat Test
At working pressure
...kg/§²× :1.1
Water
For use with service water, waste water, industrial plants.
