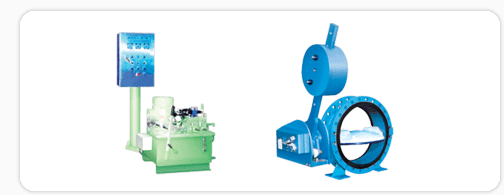

Valve Type : Emergency self-closing Butterfly Valve
                   (Non-return)
Connection : Flanged

Pressure Rating : Max 10kg/§²
Size Range : DN 600 - 2000

Valve Operator : HYDRAULIC Actuator



  For tight shut-off and throttling services
  Seif-adjusting lasts the life of the valve
  Proven reliability over the life of the valve
  Replaceable Seat
  End conn.: ISO PN 10, PN 16, JIS 10K, ANSI 150, AWWA C207




Item
Material
Body
    Cast Iron, Ductile Iron. A216 WCB, A351 CF8/CF8M etc
Disk
    Stainless Steel, Ductile Iron, AL-Bronze, Rubber lined disc etc
Seat
    NBR, EPDM, VITON
Stem
    Stainless Steel, Monel etc


Type
Description
Pressure
Test Medium
Body Test
At working pressure
...kg/§² & times :1.5
Water
Seat Test
At working pressure
...kg/§² & times :1.1
Water





Hydro power plant - pen stock lnlet valve
  Pump discharge valve
