Forged Valve : Bellows Type
Gate Valve | Globe Valve | Pressure Temperature Table | Features | End Connections | Product Range

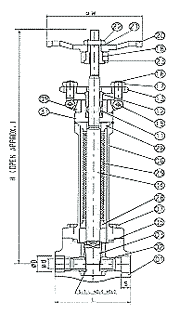

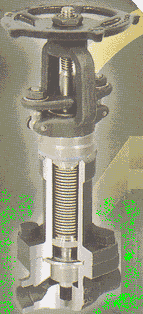

Gate Valve   [top]

Globe Valve   [top]

Pressure Temperature Table   [top]

Features   [top]

  • Suitable for steam service.
  • Full stellite disc and seats.
  • 3-Ply hydroformed bellows
  • Fixed backseat below packing
  • Full bore type
  • Back up packing (Extra Deep packing chamber)
  • End Connections   [top]

    FLANGED TYPE (ANSI B16.10, JIS B2210) SOCKET WELD (SW) (ANSI B16.11)
    SCREWED END (ANSI B1.20.1) BUTT WELD (BW) (ANSI B16.25)

    Product Range   [top]

    MATERIAL A105
    A182 F304, F304L, F316, F316L
    A182 F1, F5, F9, F11, F22
    etc.
    BORE FULL PORT
    TYPE SEAL WELDED BONNET
    CLASS 600#, 800#, 900#, 1500#, 2500#
    SIZE 10A ~ 50A
    ENDS SW, BW, NPT, FLANGED
