Forged Valve : Globe Valve
| Bolted Bonnet | Extended Bolted Bonnet | Welded Bonnet | End Connections | Product Range |

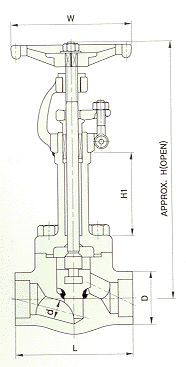

DESIGN : API 602
Bolted Bonnet
|
|
| CLASS 800# & 1500#, BOLTED BONNET | |
|
|
| CLASS 1500#, 2500#, WELDED BONNET | |
| FLANGED TYPE (ANSI B16.10, JIS B2210) | SOCKET WELD (SW) (ANSI B16.11) |
|
|
| SCREWED END (ANSI B1.20.1) | BUTT WELD (BW) (ANSI B16.25) |
|
|
| MATERIAL | A105 A182 F304, F304L, F316, F316L A182 F1, F5, F9, F11, F22 etc. |
| BORE | REDUCED PORT, FULL PORT |
| TYPE | BOLTED BONNET, WELDED BONNET. |
| CLASS | 600#, 800#, 900#, 1500#, 2500#, 4500# |
| SIZE | 10A ~ 50A |
| ENDS | SW, BW, NPT, FLANGED |
| |||
