Line Blind : Sliding Type
[back]




  • Features
       Quick change & easy operation

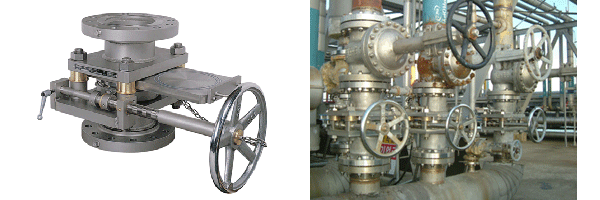

      A blind plate to slide straight forward and backward and only one person to blind a heavy pipe line within
      2   minutes upto 24¡±with safe and ease by operating the hand wheel
       No line spread
      Unique & powerful mechanism makes a gap to turn the spectacle plate without line spreading.
      A    pplied for wide range of medium
      Gas, fuel, solvent, petroleum products, slurry, powder, chip, mixing liquid
      Double safety locking
      Locking devices are double installed to avoid operator¡¯s carelessness and one of them can be locked
      with a key
          Gasket protection cover
      Exterior of spectacle is protected from injured by a protection cover

  • Operating sequence

step 1 unlock the key and clamp lever

step 2 turn the hand wheel counter clockwise, it makes a gap to slide the blind plate without line spreading

step 3 slide the blind plate to change open/close position



step 4 turn the hand wheel clockwise to secure the blind valve

step 5 lock the clamp lever and key

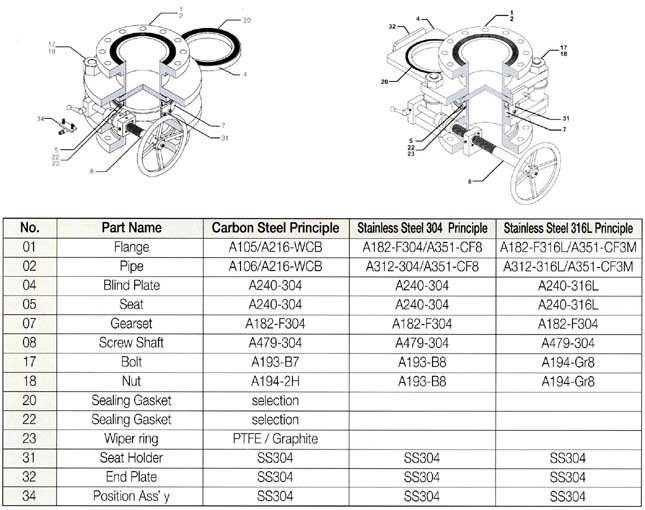

  •  Parts Material

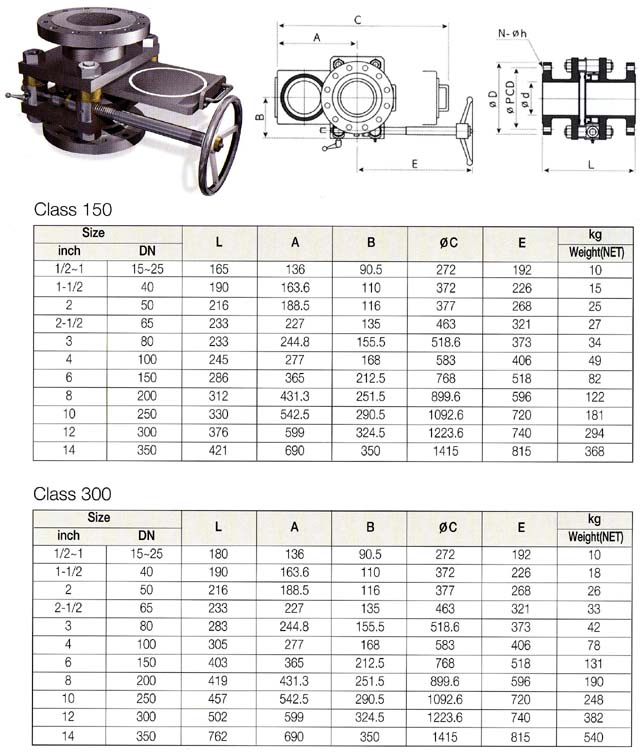

  •  Dimension
