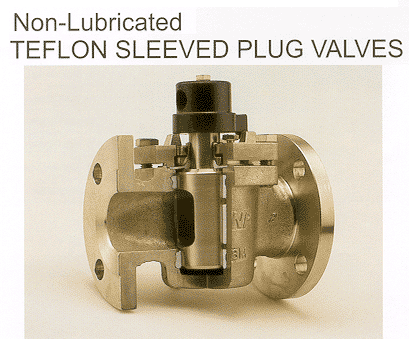

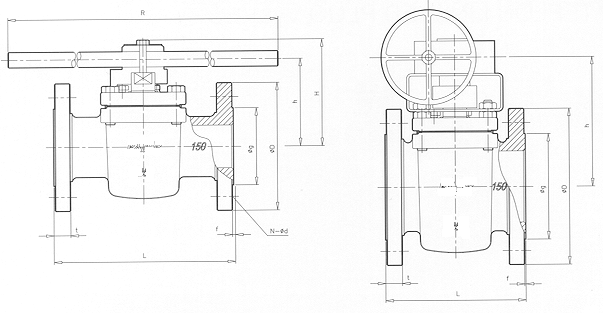

Non-Lubricated Teflon Sleeved Plug Valve

• TYPE : Non-Lubricated Type
• MATERIAL :
• BODY / PLUG : ASTM A216 WCB, WCC
                                 ASTM A351 CF8M, CF3M, CF8, CF3, CN7M, CD4M
                                 ASTM A352 LCB

       SLEEVE : PTFE, RTFE

• PRESSURE & SIZE RANGE

ANSI 150LB 1/2" ~ 18"
ANSI 300LB 1/2" ~ 14"
ANSI 600LB 1/2" ~ 6"
JIS 10K, 20K, 40K
DIN PN10, PN16, PN25, PN40

• MAIN FLUID : Toxic, Flammable, Explosive Fluid Line and No-leakage required Line
• SPECIALTY

Zero-Leakage

Specially Designed Stem Seal

Weather Proof Top-Seal Structure will not allow any penetration of fluid from out side

No dead space inside of valve

No Maintenance Required

Easily Jacketed Type

　

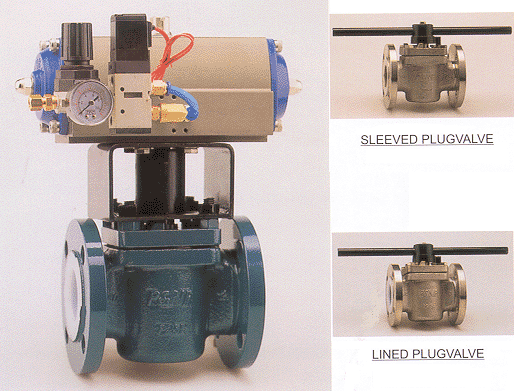

Non-Lubricated SLEEVED PLUG Valve

Design more economical, flexible, and compact fluid handing systems.

Bi-directional flow, simple actuation, lightweight, compact design and multi port configuration all facilitate improved system design.

Superior, Longer-lasting In-Line Sealing

The insert PTFE sleeve completely surrounds the plug.
The sleeve provides a large, circumferential sealing surface from port to port.  Open, close or rotating, the sealing is assured.
No ball or gate valve can match this sealing power.

Secure sealing with no cold-flow, deformation

Blow-out or rotating of the sleeve

The sleeve is securely nestled in the valve body.

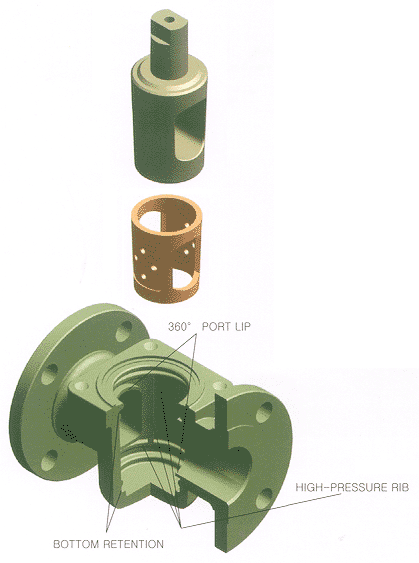

High-pressure ribs, top and bottom retention, and 360 degree port lips all assure sleeve containment.

No seizing. No sticking

As the plug rotates, the 360 degree lips provide a self cleaning action to remove scaling and adhering media.

No cavities. No contamination.

There are no body cavities where flow media can accumulate and contaminate future processing.  The cavity-free design also prevents sticking.

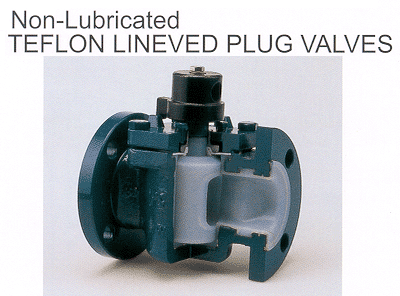

Non-Lubricated TEFLON LINED PLUG Valve

• TYPE : Non-Lubricated Type
• MATERIAL : BODY / PLUG : ASTM A216 WCB,               A351 CF8M, CF3M

LINING : FEP, PFA

• PRESSURE & SIZE RANGE

ANSI 150LB 1/2" ~ 12"
ANSI 300LB 1/2" ~ 12"
JIS 10K, 20K, 40K
DIN PN 10, PN 16, PN 25, PN 40

• MAIN FLUID : Acidic or Alkalic Fluid Line specially required for No-Leakage

Zero-Leakage
Specially Designed Stem Seal
Weather Proof Top-Seal Structure will not allow any penetration of fluid from out side
No dead space inside of valve
No Maintenance Required
Specially Designed TEFLON HINGE will not allow any Crack, Shrinkage or Deformation of Teflon Lining

　

　

　

---
