Specification | Product Range |
Designed and manufactured according to KS B2340 (JIS B2063) for a single or two port air valve for water service. Used as air inlet or outlet in supplying and draining water, and for removing air in water. Authorized by Permit No. 7341 which grant use of K.S. (Korea Industrial Standardization) mark on the air valve products. |

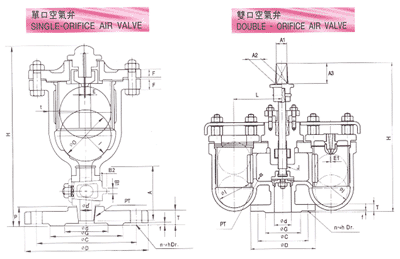

1. SIZE Single port type : 13mm ~ 25mm Double port type   : 50mm ~ 150mm 2. TYPE OF FLUID : Service water, Sea water 3. WORKING PRESSURE : Max. 7.5kgf/cm2 4. VALVE END : Flange (KS D4309), ANSI, PN etc 5. MAIN MATERIAL Body : Cast Iron (GC200) Disc : Bronze Casting (BC6) Float : Ebonite or steel plate rubber coating, F.R.P. Seat : Bronze Casting (BC6) The other materials are available on request. |
MATERIAL | CAST IRON, DUCTILE IRON etc. |
SIZE | SINGLE : 13A,
20A, 25A DOUBLE : 50A ~ 250A |
| |||
