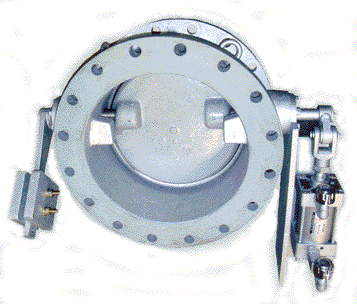

Non-slam Check Valve (Butterfly type)

The Non-slam check valve can be equipped with a counterweight and may have an optional hydraulic damper cylinder
with an unidirectional oil flow metering valve.

The closing time of the valve can be controlled, with limits, by metering the hydraulic flow in a damper unit.

The unidirectional oil flow control valve on the hydraulic / damper cylinder can be set from full open to full closed
by adjusting the external coupling. If required it is possible to furnish an auxiliary unidirectional oil flow metering valve
which be used to adjust the opening time.

The hydraulic cylinder is complete with a by-pass device and safety valve set to permit the free flow of the oil
when the oil pressure is higher than 210 bar.

This abnormally high pressure can be reached only if the closing time is set too long or the hydraulic flow metering valve
is not functioning.

The high return flow in the butterfly valve caused by the valve closing too slowly can generate very high dynamic torque
which could exceed allowable stressed  if not protected by the relief valve.

SPECIFICATION
1. SIZE : Butterfly check valve : 80mm ~ 3,000mm

2. WORKING PRESSURE : Max. 16kgf/cm2

3. VALVE END
   Flange (KS D3578, 4309)
   Other standards and available on request.

4. FLUID : Service Water, Sea Water etc.

5. Rubber Lined type for sea water.

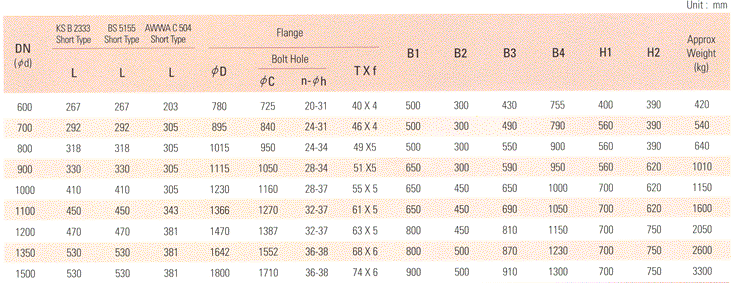

Product Range   [top]
MATERIAL

Cast Iron

Ductile Iron

Cast Carbon Steel
etc.

SIZE 80A ~ 900A

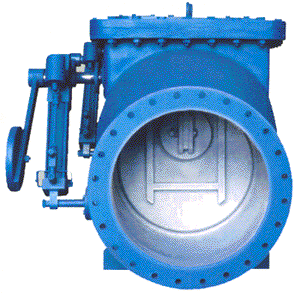

Non-slam Check Valve (Swing type)

A standard check valve actuated by counter flow.  The valve can be used with by-pass valve or counter-weight.
On request, dash pots check valves being equipped with dash pots to preclude sudden closure in event of counter flow are available.

SPECIFICATION
1. SIZE : Swing check valve : 80mm ~ 1,500mm

2. WORKING PRESSURE : Max. 16kgf/cm2

3. VALVE END
   Flange (KS D3578, 4309)
   Other standards and available on request.

4. FLUID : Service Water, Sea Water etc.

5. TEST PRESSURE
   Leakage test : Working pressure X 1
   Shell test : Working pressure X 2

6. MAIN MATERIAL
   Body : Cast Iron (GC200)
          Ductile Cast Iron (GCD450)
          Steel Casting (SC410)
   Disc : Cast Iron (GC200)
          Ductile Cast Iron (GCD450)
          Steel Casting (SC410)
   Stem : Stainless Steel (STS304, STS403)
   Seat : Bronze Casting (BC6)
          Stainless Steel (STS304)
   The other materials are available on request.


Product Range   [top]

MATERIAL

Cast Iron

Ductile Iron

Cast Carbon Steel
etc.

SIZE
80A ~ 900A (Swing type)
