Sluice Gate Valve

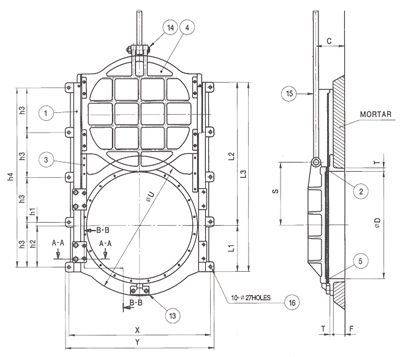

CIRCULAR TYPE :

 A disc-shaped sluice gate with outside-screw rising or non-rising stem.  Especially suitable for water intakes, outlets and the like where fluid flows in the same direction.  Operated form a headstock, hydraulic and oil pressure cylinder or electric motor.




SPECIFICATION
1. SIZE : Nominal Dia. 200mm ~ 3,000mm
2. FLUID : Service water, sewage, sea water etc.
3. WORKING PRESSURE : 14 psi (10mAq)

4. MAIN MATERIAL
Body : Cast Iron (GC200)
          Ductile Cast Iron (GCD450)
Disc : Cast Iron (GC200)
         Ductile Cast Iron (GCD450)
Seat : Bronze Casting (BC6)
Stem : Stainless Steel (STS304, STS403)

The other materials are available on request.


Product Range   [top]

MATERIAL

Cast Iron
Ductile Iron

etc.

SIZE 200A ~ 2000A

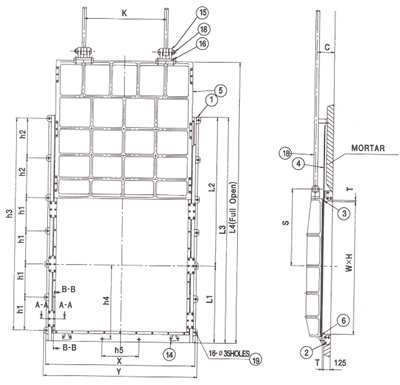

RECTANGULAR TYPE :

A disc-shaped sluice gate with outside-screw rising or non-rising stem.  Especially suitable for water intakes, outlets and the like where fluid flows in the same direction.  Operated from a headstock, hydraulic and oil pressure cylinder or electric motor.

SPECIFICATION

1. SIZE : Nominal Dia. 200mm ~ 4,000mm
2. FLUID : Service water, sewage, sea water etc.
3. WORKING PRESSURE : 14psi (10mAq)
4. MAIN MATERIAL
Body : Cast Iron (GC200)
          Steel Plate (SS400)
Disc : Cast Iron (GC200)
         Steel Plate (SS400)
Seat : Bronze Casting (BC6)
Stem : Stainless Steel (STS304, STS403)
The other materials are available on request.

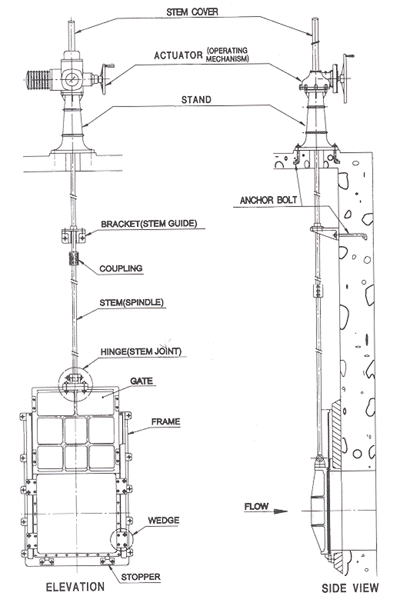

INSTALLATION
